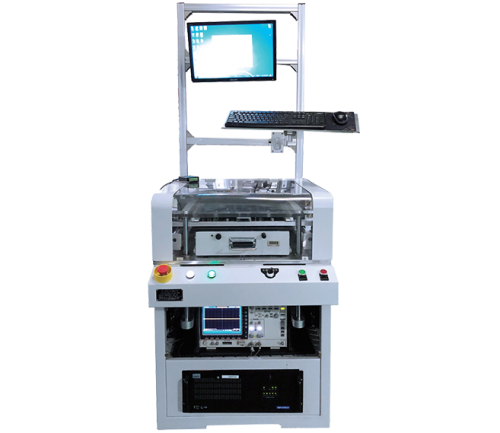

ATS automation test equipment

Modular transfer fixture,which can beconfigured according to user needs;

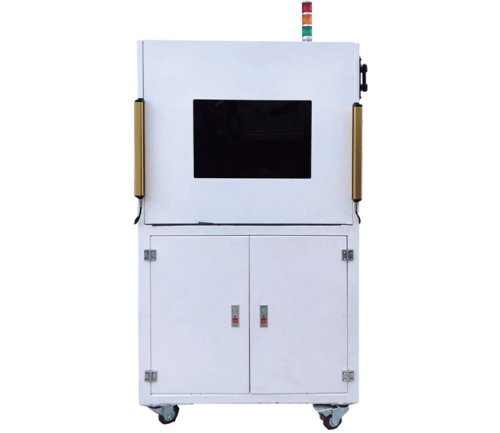

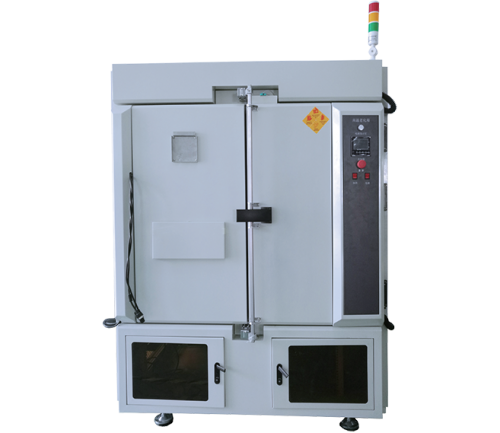

Increase the test capacity,save space,real-time monitor the aging process,andthe equipment has the function of abnor-mal alarm and shutdown.

The size of PCB board can reach 380*300MM;

You can program 16PCS at a time

Each module of the system only needs 7 min to complete thetest;

The plug harness is fastened in place at one time,reducing themanual error operation;

The contactor can automatically control the switching and auto-matically input the relevant data;

Equipment safety,stability and reliability.

Automatically identify each product,and all are in onedirection;

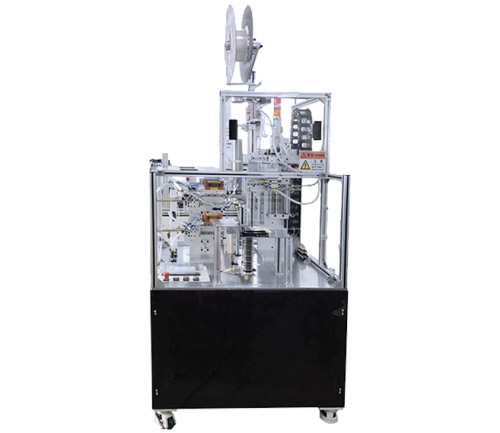

12 products are automatically packed and sealed.

Only need 2S,Can complete the whole "K-treasure"packag-ing line.

Automatic device separation load material,attach bar code,box separation forming.

Automatic identification of the "K-treasure"serial number andcarton serial number whether the same,after inspection OK.

Automatically paste the qualification certificate to complete.

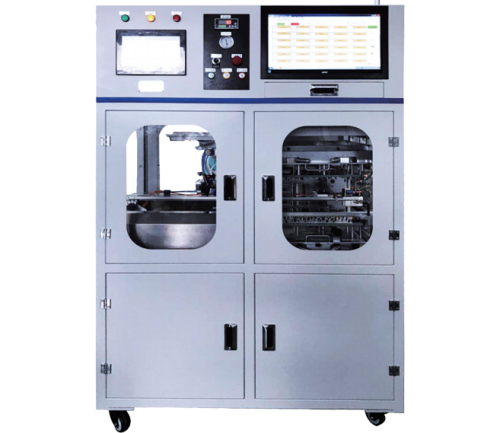

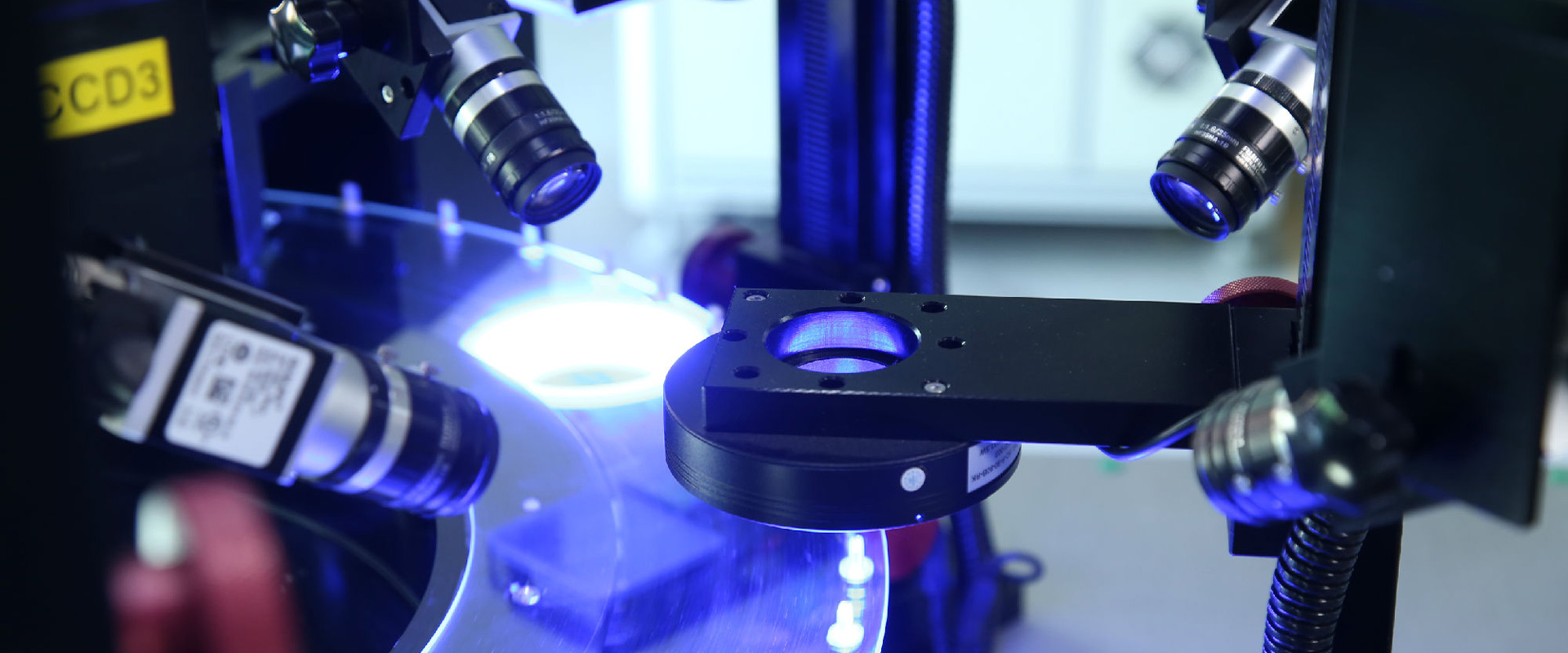

Double head detection,2 pieces can bedetected in 4.5s,more efficient.

More reasonable design,strong univer-sality and replaceable vehicle.

Measurement accuracy<0.015mm.

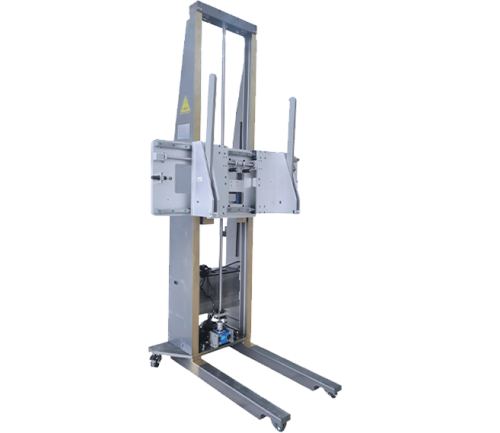

The equipment rises and falls automatically.and it can be descend to 290mm and rise to 335mm.The lifting speed25mm/s

The width of the product can be adjusted,the minimum width is 555MM,the maximum is 1320MM.

The equipment bears 200kg,which is convenient conve-nient to move.

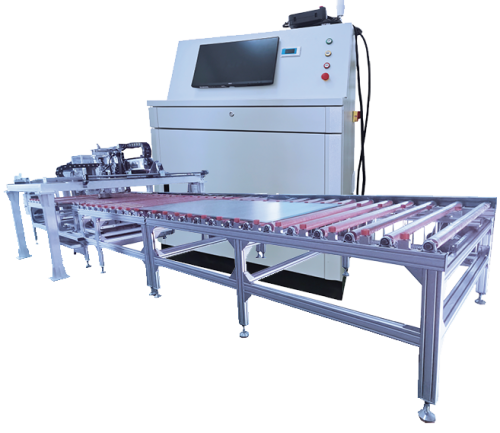

The equipment can be adjusted with the size and thickness of the product.The maximum size can reach 2500*1500mm,the minimum size can reach 400*400mm,and the 8mm thick-ness can be operated;

The polishing solution is filtered to protect the product from scratches and damages;

The equipment has high stability and can maintain continuous production.

One stop assembly of base plate,sprocket,cover plate,needle plate,spring gasket and lock nut;

The position of each module is fixed,and it is not necessary to adjust the position according to the product type,so as to minimize the time and manpower for on-site product switching.

According to the customer's test requirements and test prod-ucts,choose the control mode of fixture for design and produc-tion.

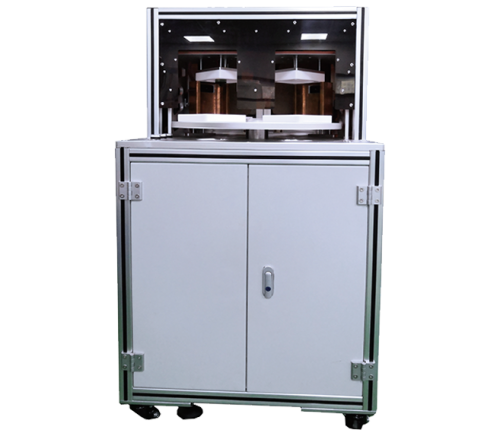

This kind of fixture mainly tests the function of the prod-uct,such as voltage,current,power and frequency.The test speed is very fast and the test data is accurate.

屏蔽箱和特殊设计治具

无线治具

启动模式治具

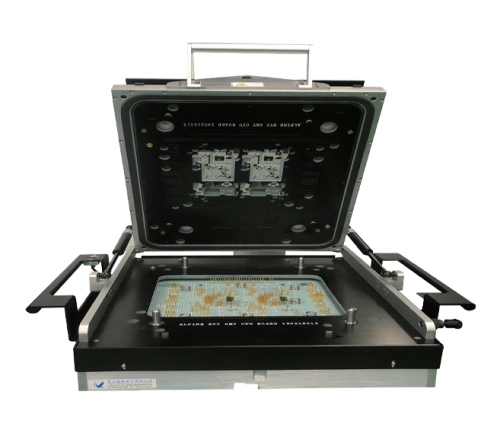

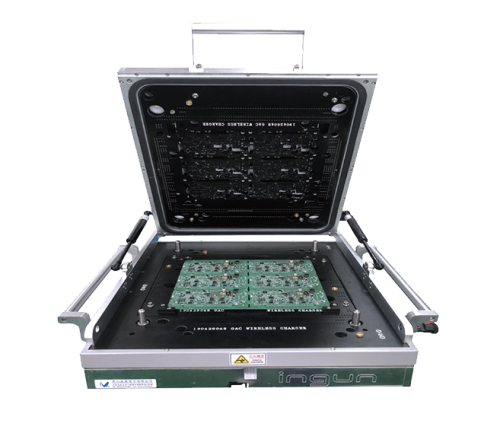

ICT test fixture design is applicable to hp3070,Teradyne,spea3030,IPTE,tr501/518/8100 and other models.It can detect PCBA board fault online.Due to accurate fault location and convenient maintenance,it can greatly improve production efficiency and reduce maintenance cost.

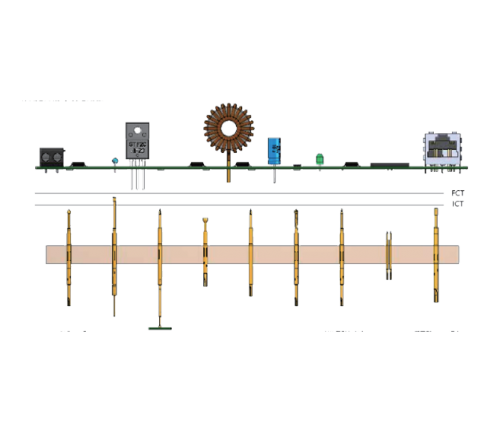

ICT probe s mainly used to measure all parts of an assembly .

During this period,defective parts can be identified and replacedaccordingly

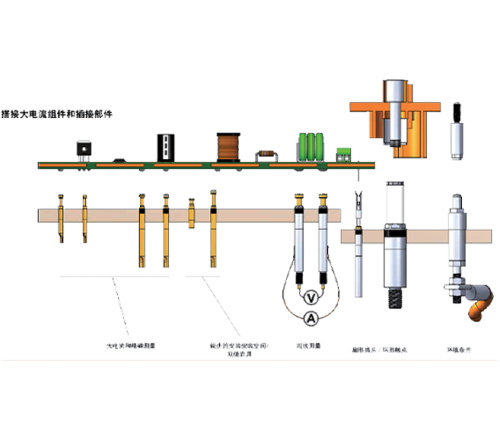

The FCT probe checks whether a component has achieved thes-pecified 100%function.According to the intended area of use,the environment is replicated and the electrical performance ischecked.

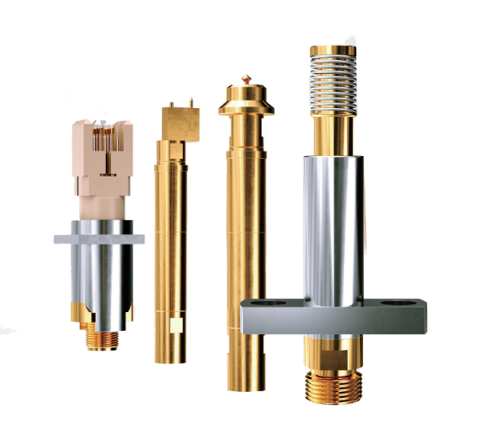

High current probes are used in many industries and applications with high current,such as testing,functional testing,signaltrans-mission,power supply,in production,and as built-incontact elements.In order to ensure the safe transmission of highcurrent,the plungers in INGUN high current test probes can be dividedintotwo parts.

INGUN switching probes are so-called "normally open contact"and are normally opened.The electric circuit is closed when the plunger is activated,allowing the plunger to be pushed further beyond the switching point.The rated current applied can only be transmitted in the closed state.

Ingun RF probe is applied in various industries,providing com-plete RF test fixture with RF probe,interface,shielding chamber and completed wiring,and ensuring product quality and customer satisfacton with its precise and repeatable RF performance test.
